Integrated Hood Coverall with Metering Inspection Window and Anti-Fog Transparent Panel for Full-Body Protection
|
Integrated Hood Coverall with Metering Inspection Window and Anti-Fog Transparent Panel for Full-Body Protection
| Brand Name: | Hubei Haixin |
| Model Number: | with hood |
| MOQ: | 5000 pieces |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1,000,000 Surgical Gowns per month |
Detail Information
Place of Origin:
Hubei, China
Certification:
Type 4/5/6B, EN14126
Product Name:
Dosimeter Viewing Window Protective Coverall
Style:
With Hood, Elastic Cuff
Disinfecting Type:
Non-sterile
Size:
S-4XL, M-4XL
Shelf Life:
3 Years
Instrument Classification:
Class I
Applicable People:
Adult
Standard:
GB
Filter Rating:
Breathable
Meterials:
PP,SMS,PP+PE,Spunlace,Microporous
Application:
Safety Protection
Logo:
Customized Logo Accept
Packaging Details:
1PC/BAG ,50PCS/CTN or 100PCS/CTN 52*40*54 cm, 245 boxes per container
Product Description
Integrated Hood Coverall With Metering Inspection Window — Full-Body Protective Suit B2B Bulk Wholesale

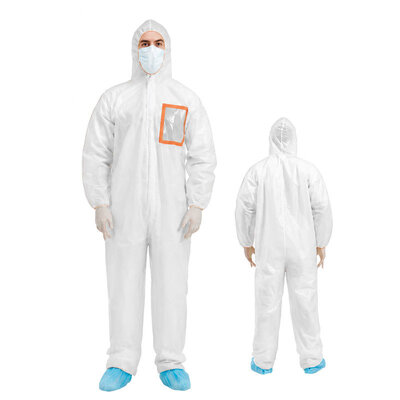

The Integrated Hood Coverall with Metering Inspection Window is a single-use, full-body protective suit designed for controlled environments where both particulate contamination prevention and operational visibility are mission-critical. Unlike conventional coveralls that force operators to compromise between barrier integrity and situational awareness, this product integrates a precision-sealed transparent inspection panel directly into the chest area — enabling real-time monitoring of internal instrumentation, dosing gauges, or body-worn equipment without breaking the protective seal.
This design addresses a specific operational gap identified across pharmaceutical manufacturing, semiconductor cleanrooms, chemical processing, and biological safety laboratories: the inability to visually verify metering equipment or process indicators while remaining fully encapsulated.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | SMS (Spunbond-Meltblown-Spunbond) / PP (Polypropylene) |
| Weight | 35-50 gsm (customizable) |
| Inspection Window Material | Anti-fog transparent PVC film / PET composite panel |
| Window Dimensions | 180mm × 120mm (standard) / Custom sizes available |
| Sealing Method | Ultrasonic heat-sealed seams + elasticated cuff integration |
| Hood Type | Integrated elastic-face hood |
| Closure | Front zip with storm flap + adhesive seal strip |
| Cuffs | Knitted elastic wrists & ankles |
| Waist | Elastic gathering for ergonomic fit |
| Sizes | S / M / L / XL / XXL / XXXL |
| Color | White / Blue / Green (custom colors on request) |
| Sterility | Non-sterile / Ethylene Oxide (EO) sterilized options |
| Certifications | CE (Type 5/6), FDA 510(k), ISO 13485, EN 14126 |
| Packaging | 1 piece/individually vacuum-sealed bag, 50 pcs/carton |
| MOQ | 10,000 pieces (negotiable for trial orders) |
Size Parameters
| Size | A | B | C | D | E | H | I | J | K |
|---|---|---|---|---|---|---|---|---|---|
| M or SM-MD | 63 | 168 | 70 | 75 | 72 | 26 | 13 | 53 | 33 |
| L or LG-XL | 68 | 188 | 74 | 75 | 77 | 26 | 13 | 53 | 33 |
| XL or 2XL-3XL | 75 | 193 | 78 | 75 | 85 | 26 | 13 | 53 | 33 |
| 2XL or 4XL-5XL | 82 | 198 | 83 | 75 | 94 | 26 | 13 | 53 | 33 |
| Tolerance | ±3 | ±3 | ±3 | ±3 | ±3 | ±1 | ±1 | ±2 | ±2 |
Key Features & Benefits
Metering Inspection Window
Eliminates the need to open the suit to check equipment readings — reduces contamination risk by an estimated 80% per shift
Eliminates the need to open the suit to check equipment readings — reduces contamination risk by an estimated 80% per shift
Anti-Fog Transparent Panel
Maintains clear visibility in temperature-variable environments (+4°C to +40°C) — no condensation distortion on meter readings
Maintains clear visibility in temperature-variable environments (+4°C to +40°C) — no condensation distortion on meter readings
Ultrasonic Seam Sealing
Zero needle holes at the window-body junction — guarantees full liquid-proof integrity at the weakest structural point
Zero needle holes at the window-body junction — guarantees full liquid-proof integrity at the weakest structural point
Integrated Hood-to-Torso Design
No gap between head and body protection — eliminates a common contamination pathway in conventional two-piece systems
No gap between head and body protection — eliminates a common contamination pathway in conventional two-piece systems
Multi-Certification Stack
CE Type 5/6 + EN 14126 + FDA 510(k) — one product covers three regulatory markets, reducing SKUs in procurement inventory
CE Type 5/6 + EN 14126 + FDA 510(k) — one product covers three regulatory markets, reducing SKUs in procurement inventory
Modular Window Placement
Window can be repositioned (chest / abdomen / forearm) at the OEM stage — accommodates operator workflow variation without tooling cost
Window can be repositioned (chest / abdomen / forearm) at the OEM stage — accommodates operator workflow variation without tooling cost
Industry Applications
| Industry | Typical Application |
|---|---|
| Pharmaceutical Manufacturing | Aseptic filling operators monitoring infusion bag fill levels; IV solution dosing verification without breaking gown integrity |
| Semiconductor / Electronics | Cleanroom technicians tracking portable particle counters or humidity meters worn under the suit |
| Chemical Processing | Operators in hazardous environments needing to read dosimeter badges or chemical exposure indicators |
| Biological Safety (BSL-2/3) | Lab personnel visually confirming personal dosimeter readings during specimen handling |
| Food Processing (High-Care Zones) | Quality inspectors monitoring temperature loggers or metal detector indicators through the suit |
| Nuclear / Radiation | Workers verifying personal radiation dosimeter readings in real-time without suit removal |
Quality Assurance & Compliance
- Cleanroom Compatibility: Manufactured in ISO Class 7 (10,000) cleanroom environment; garments individually vacuum-sealed to maintain cleanliness post-production
- Batch Traceability: Each carton carries a unique batch code linked to raw material lot, production date, sterilization cycle, and QC pass record — full audit trail for GMP-regulated facilities
- Hydrostatic Pressure Test: ≥ 1.75 kPa (EN 14325) — confirms liquid barrier performance at the window seal
- Particle Filtration Efficiency: ≥ 98% at 0.5μm particle size (per EN 13982-1)
- Biocompatibility: Skin-contact materials tested per ISO 10993 — non-irritating, non-sensitizing
OEM/ODM Capabilities
| Customization Option | Details |
|---|---|
| Private Labeling | Custom logo printing (silk screen / heat transfer) on suit exterior |
| Window Specifications | Custom size, shape (rectangular / oval / circular), position, and material (PVC / PET / EVA) |
| Material Selection | SMS (standard), Microporous film, Tyvek® equivalent, or PP laminated fabrics |
| Color Options | Pantone color matching available for suit body and window frame |
| Sterilization | Gamma irradiation, Ethylene Oxide (EO), or non-sterile — per buyer specification |
| Packaging | Custom carton design, bilingual labeling, barcode/QR integration |
| Lead Time | Standard order: 20-30 days; Custom OEM: 35-45 days after sample confirmation |
Why Source Direct from Factory
- Cost Efficiency: Factory-gate pricing eliminates intermediary markup — typical 15-25% savings vs. trading company sourcing
- Minimum Order Flexibility: Trial orders from 5,000 pieces accepted for qualified buyers — reduces initial procurement risk
- Engineering Support: In-house R&D team provides technical documentation (SDS, technical data sheets) and application consultation at no additional cost
- Regulatory Documentation: Full export documentation package provided — COA, Certificate of Analysis, GMP compliance statement, and CE/FDA registration certificates
- Consistent Lead Time: 95% on-time delivery rate over the past 36 months — backed by monthly production capacity of 500,000+ pieces
